ANA TRADING CO., LTD. will commence sales of Topre Corporation's air cargo containers outside Japan.
ANA TRADING CO., LTD. will commence sales of Topre Corporation's air cargo containers outside Japan.

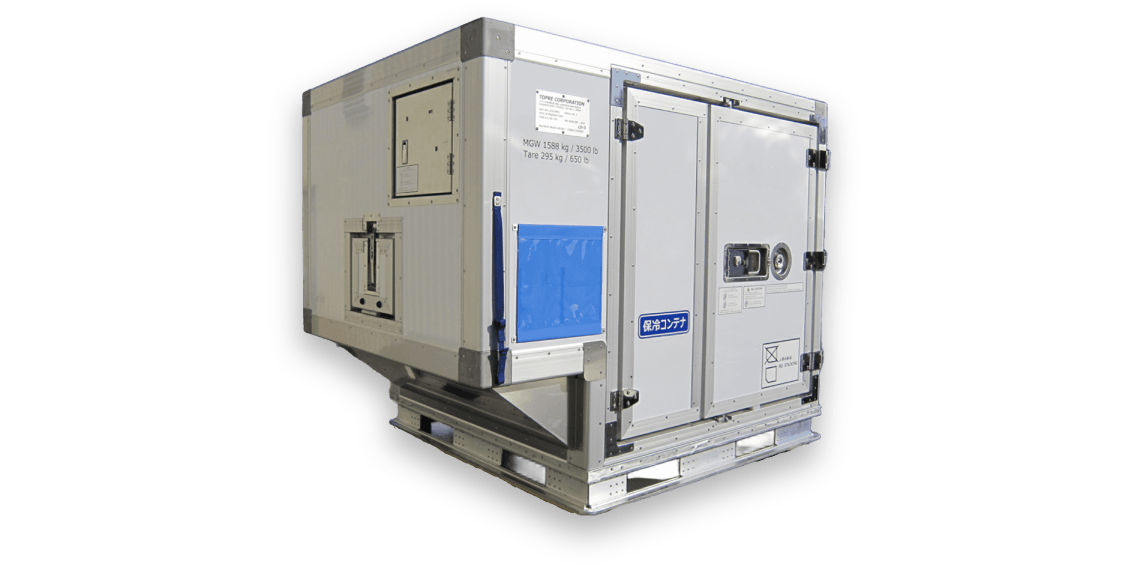

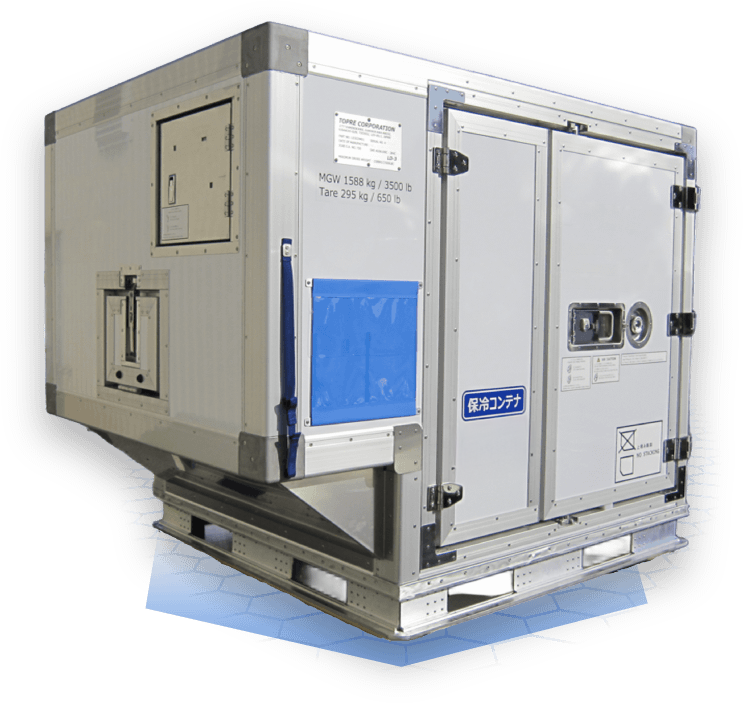

Topre's LD3-CD-M01 air cargo cool container offers high cooling performance, low dry ice consumption, superior durability, and ease of operation, drawing on years of experience and technology developed in Japan.
Key reasons behind the advantages of Topre's air cargo cool containers
01High cooling performance and low dry ice consumption
The cooling power of Topre's air cargo cool containers has been proven through the following tests.
Thanks to years of experience and technological advances, Topre containers achieve high cooling performance and reliably maintain the temperature inside the container. This reduces the amount of dry ice used.

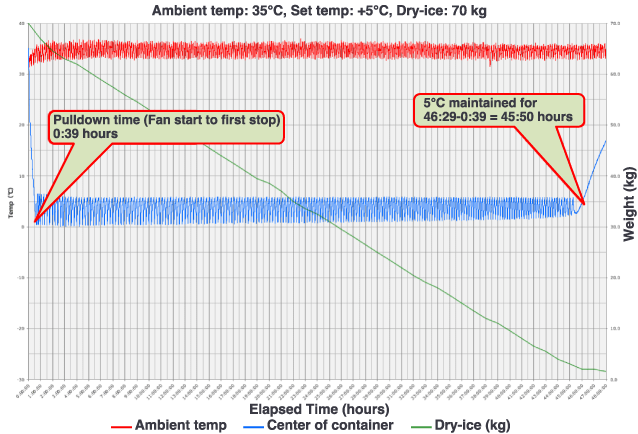

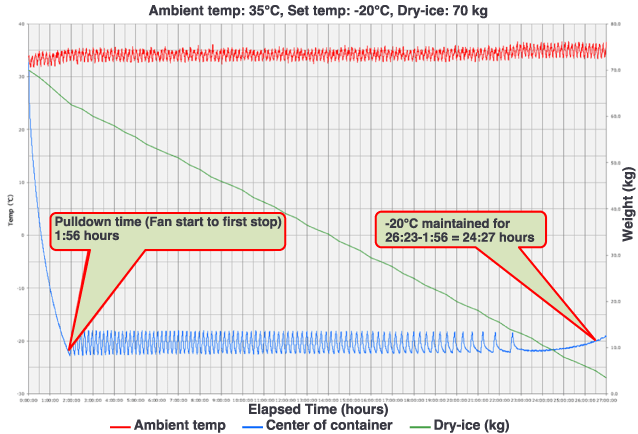

At an ambient temperature of 35℃, using 70 kg of dry ice and 8 alkaline batteries, the container can maintain an internal temperature of ‒20℃ for 24 hours and 5℃ for 45 hours.
02Superior durability
Topre's air cargo cool containers have a carefully engineered shape that provides superior durability.

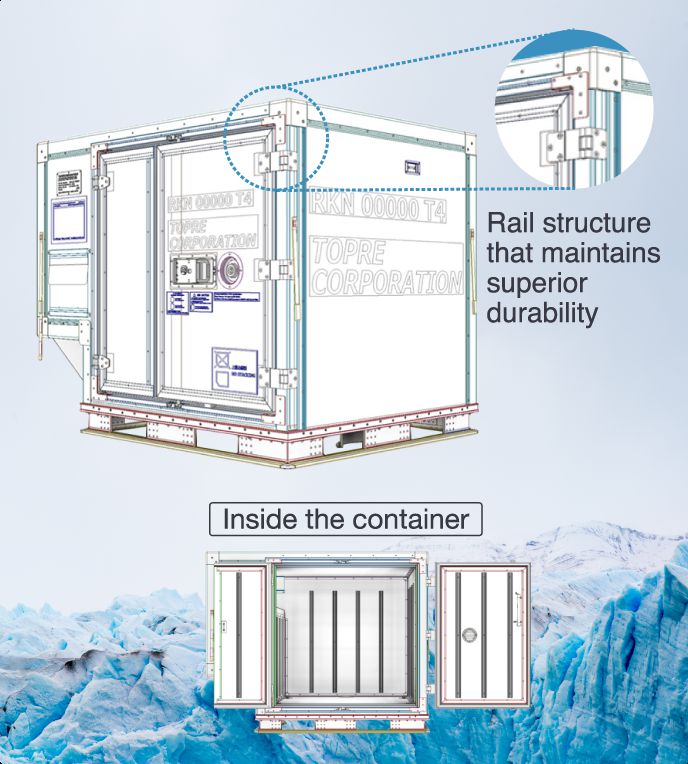

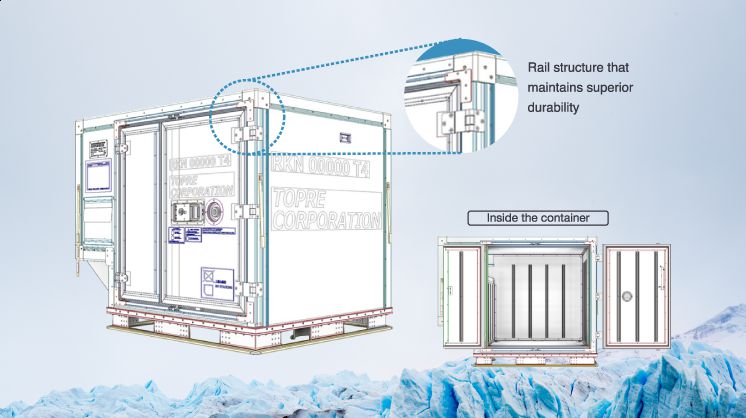

A sturdy base and a rail structure designed to prevent snagging reduce the frequency of repairs.
03Ease of operation
Topre's air cargo cool containers offer simple operation and easy installation.

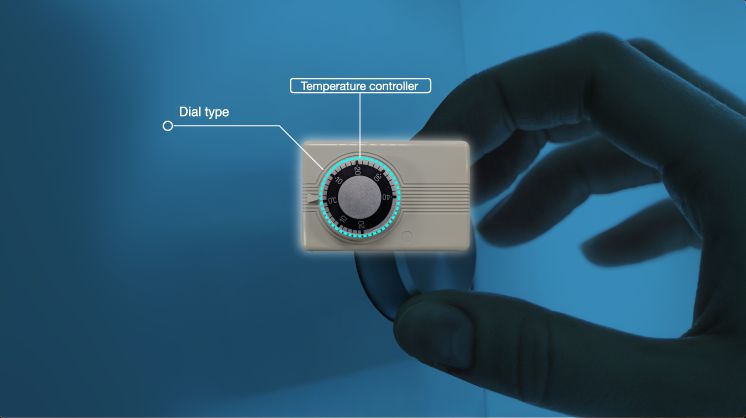

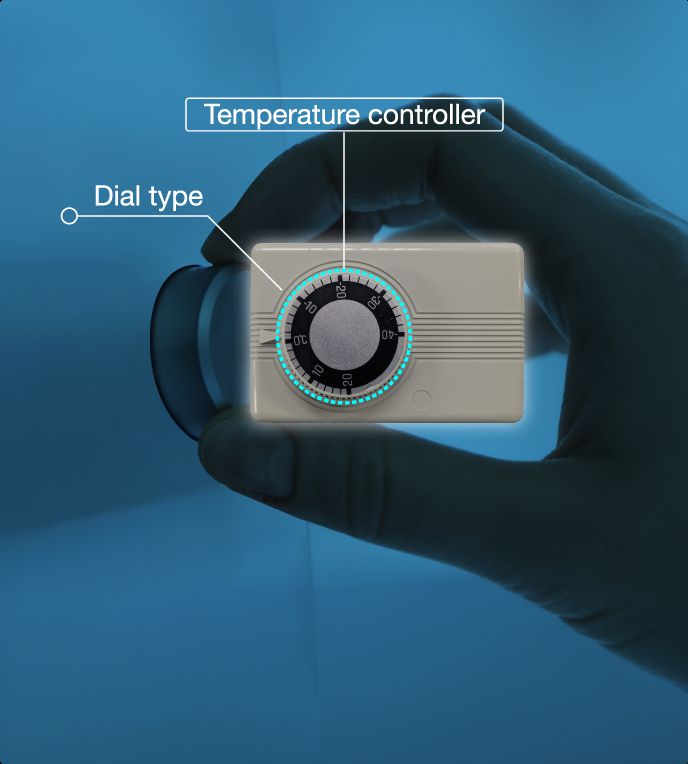

The simple dial temperature setting makes operation easy for anyone. No training for complicated operations required.
04Low center of gravity
Topre's air cargo cool containers are designed with a low center of gravity for easy handling.

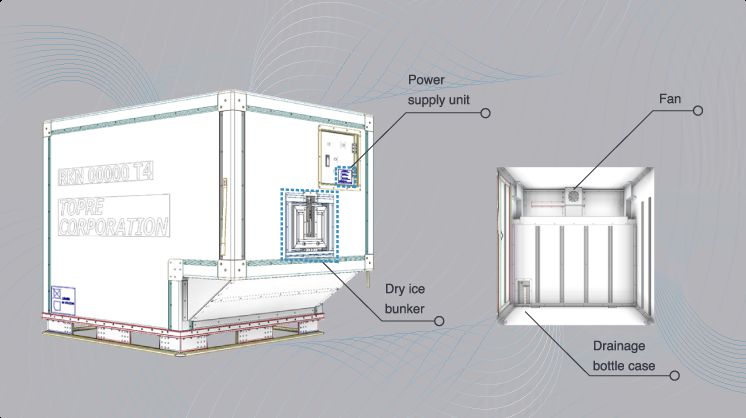

The dry ice bunker is positioned low enough to give the container a low center of gravity, ensuring stability and ease of handling in daily use.
Additionally, the design prevents cold air from the dry ice from entering the container, ensuring that the internal temperature does not become excessively low.
IATA ID Code : RKNSpecs
Functions
| Temperature Range | -20 to 5°C |
|---|---|
| Thermal Retention | 5°C : 45 hours -20°C : 24 hours |
| Ambient Temperature Range | +10 to 35°C |
| Power Supply | 8 D batteries (12 V DC) |
| Cooling Method | Dry-ice (Max: 108 kg) |
Dimensions
| External Dimension (L × W × H) IATA Max Dimensions (L × W × H) |
2,001 × 1,534 × 1,620mm 2,007 × 1,534 × 1,626mm |
|---|---|
| Internal Dimensions (L × W × H) | Floor: 1,324 × 1,290 × 1,292mm Shelf: 447 × 1,290 × 329mm |
| Internal Volume | 2.433 m³ |
| Door Opening (W × H) | 1,247 × 1,236 mm |
Weight
| Tare Weight | 295 kg ±3% (286–304 kg) |
|---|---|
| Max Net Weight | 1,293 kg (1,284–1,302 kg) |
| Max Operational Gross Weight | 1,588kg |
Other
| Compatible Aircraft | B747, B767, B777, B787, A300, A310, A330, A350, A380, and many more |
|---|
Approved Organization
Certificate
Topre Corporation has received certification from the Minister of Land, Infrastructure, Transport and Tourism (MLIT) of Japan as an approved aircraft equipment manufacturer. It is the only manufacturer in Japan capable of handling the entire process of manufacturing and inspecting air cargo containers (ULDs).

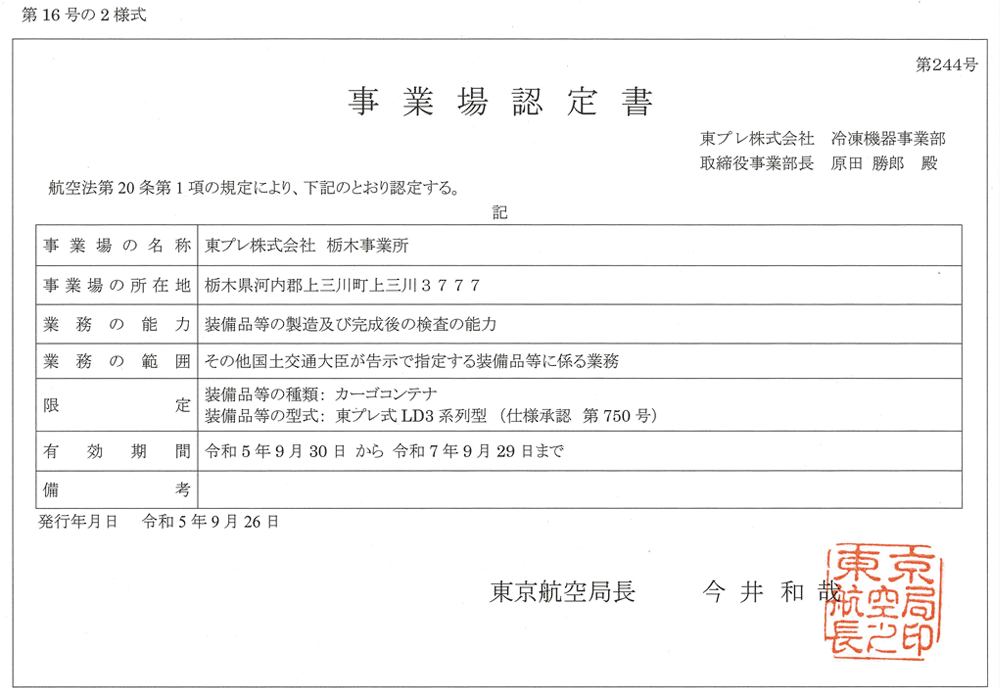

The document on the left is the Approved Organization Certificate issued to Topre Corporation by the Civil Aviation Bureau of the Ministry of Land, Infrastructure, Transport and Tourism (MLIT).
(Japanese only)
Topre's LD3-CD-M01 air cargo cool container has been approved by the Japan Civil Aviation Bureau (JCAB) and the Federal Aviation Administration (FAA).

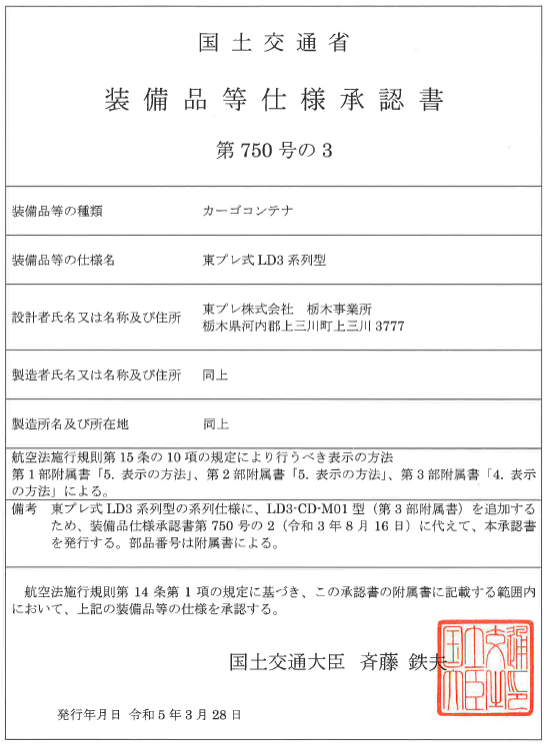

The document on the right is the certificate of approval for specification of components, etc.
issued to Topre Corporation by the Civil Aviation Bureau of MLIT. (Japanese only)
Topre Corporation is a leading manufacturer in Japan that has been manufacturing refrigerated and freezer trucks since 1968.
The company has been manufacturing air cargo cool containers for the Japanese market and, in 2019, obtained an Approved Organization Certificate from MLIT, becoming the only manufacturer of air cargo containers (ULDs) in Japan.
Topre Corporation's air cargo cool containers incorporate the company's extensive experience and technology developed through land and air transportation in Japan. We are confident that you will be satisfied with their performance.
- ANA TRADING （ALL NIPPON AIRWAYS TRADING） CO., LTD. has signed an agreement with Toprec Corporation, a member of the Topre Group, to sell Topre's air cargo cool containers outside Japan.
